fCraft.Drawing.DrawOpWithBrush Class Reference

A self-contained DrawOperation that prodivides its own brush. Purpose of this class is mostly to take care of the boilerplate code. More...

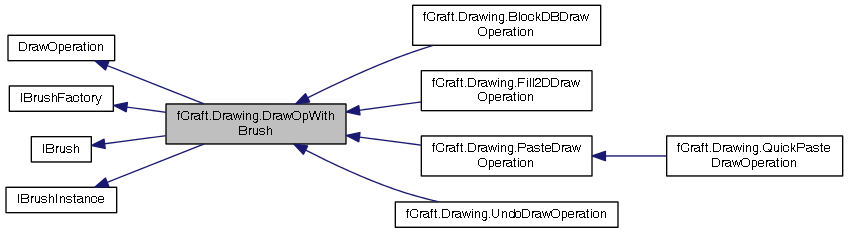

Inheritance diagram for fCraft.Drawing.DrawOpWithBrush:

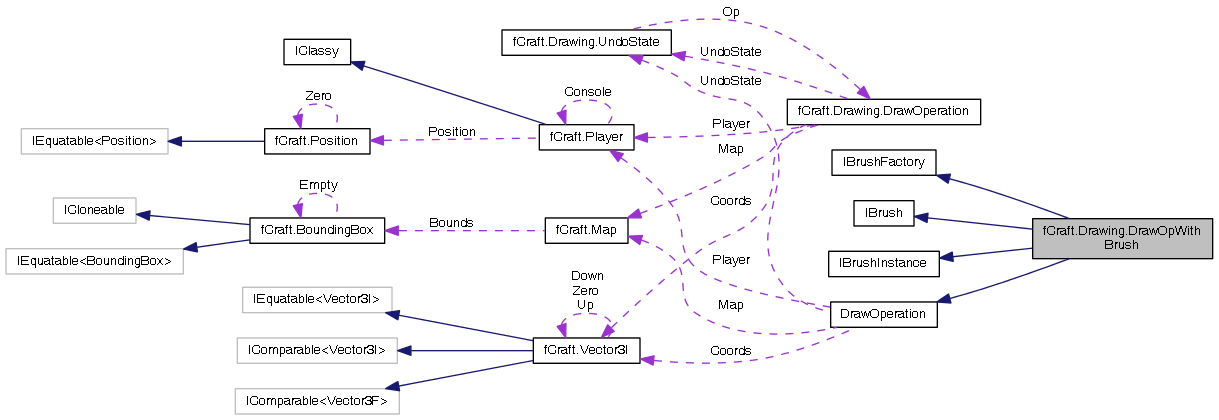

Collaboration diagram for fCraft.Drawing.DrawOpWithBrush:

Public Member Functions
abstract bool	ReadParams (CommandReader cmd)
Public Member Functions inherited from fCraft.Drawing.DrawOperation
virtual bool	Prepare ([NotNull] Vector3I[] marks)
	Prepares DrawOperation to start. Called after the player made a selection, usually on player's I/O thread. Brush property must be set before calling Prepare.
virtual bool	Begin ()
	Begins the execution of this DrawOperation. Raises DrawOperation.Beginning (cancelable) and DrawOperation.Began events.
abstract int	DrawBatch (int maxBlocksToDraw)
void	Cancel ()
	Asynchronously cancels this draw operation.
Public Member Functions inherited from fCraft.Drawing.IBrushFactory
IBrush	MakeBrush ([NotNull] Player player,[NotNull] CommandReader cmd)
	Creates a new brush for a player, based on given parameters.
Public Member Functions inherited from fCraft.Drawing.IBrush
IBrushInstance	MakeInstance ([NotNull] Player player,[NotNull] CommandReader cmd,[NotNull] DrawOperation op)
	Creates an instance for this configured brush, for use with a specific DrawOperation.
Public Member Functions inherited from fCraft.Drawing.IBrushInstance
bool	Begin ([NotNull] Player player,[NotNull] DrawOperation op)
	Called when the DrawOperation starts. Should be used to verify that the brush is ready for use. Resources used by the brush should be obtained here.
Block	NextBlock ([NotNull] DrawOperation op)
	Provides the next Block type for the given DrawOperation.
void	End ()
	Called when the DrawOperation is done or cancelled. Resources used by the brush should be freed/disposed here.

Protected Member Functions
	DrawOpWithBrush (Player player)
abstract Block	NextBlock ()
Protected Member Functions inherited from fCraft.Drawing.DrawOperation
	DrawOperation ([NotNull] Player player)
bool	DrawOneBlock ()

Properties
abstract override string	Description [get]
Properties inherited from fCraft.Drawing.DrawOperation
abstract int	ExpectedMarks [get]
	Expected number of marks to pass to DrawOperation.Prepare()
IBrushInstance	Brush [get, set]
	Brush used to determine which blocks to place. Must be assigned before DrawOperation.Prepare() is called.
BlockChangeContext	Context [get, set]
	Block change context, to be reported to BlockDB and Player.PlacingBlock/PlacedBlock events. Should include BlockChangeContext.Drawn flag.
Vector3I[]	Marks [get, set]
	Marks given by the player to this command. Marks could come from either clicks or /Mark command. Set by DrawOperation.Prepare()
DateTime	StartTime [get, set]
	Time when the draw operatation began. Set by DrawOperation.Begin()
BoundingBox	Bounds [get, set]
	Area that bounds the DrawOperation's extent, if possible to estimate in advance. Used for logging. Should be assigned, as accurately as possible, before DrawOp finishes.
bool	HasBegun [get, set]
	Whether this operation has been started (queued for processing on the Map).
bool	IsDone [get, set]
	Whether this operation is done (has finished or had been cancelled).
bool	IsCancelled [get, set]
	Whether this operation has been cancelled (e.g. by /Undo or /WLock).
int	BlocksProcessed [get, set]
	Number of blocks/coordinates that were considered for drawing.
int	BlocksUpdated [get, set]
	Number of blocks/coordinates that ended up being changed/updated.
int	BlocksDenied [get, set]
	Number of blocks/coordinates that were supposed to be changed/updated, but were left untouched due to permission issues.
int	BlocksSkipped [get, set]
	Number of blocks/coordinates that were processed, and left untouched: either because the Brush decided to skip it, or because map's current block matched the desired blocktype.
int	BlocksTotalEstimate [get, set]
	Estimate of total number of blocks that will be processed by this command. Should be as accurate as reasonably possible by DrawOperation.Prepare(). Used for volume permission checks. Must not be negative.
int	BlocksLeftToProcess [get]
	Estimated total blocks left to process.
int	PercentDone [get]
	Approximate completion percentage of this command.
int	AlternateBlockIndex [get, set]
	Whether the brush should use alternate block (if available) for filling insides of hollow DrawOps. Currently only supported by NormalBrush. Used with CuboidH/CuboidW/EllipsoidH drawops.
abstract string	Name [get]
	General name of this type of draw operation. Should be same for all instances.
virtual string	Description [get]
	Compact description of this specific draw operation, with any instance-specific parameters, and the brush's instance description.
bool	AnnounceCompletion [get, set]
	Whether completion or cancellation of this DrawOperation should be announced to Player.
bool	LogCompletion [get, set]
	Whether completion or cancellation of this DrawOperation should be logged.
bool	TimeToEndBatch [get]
Properties inherited from fCraft.Drawing.IBrushFactory
string	Name [get]
	Name of the brush. Should be unique.
string	Help [get]
	Information printed to the player when they call "/help brush ThisBrushesName". Should include description and usage information.
string[]	Aliases [get]
	List of aliases/alternate names for this brush. May be null.
Properties inherited from fCraft.Drawing.IBrush
IBrushFactory	Factory [get]
	IBrushFactory associated with this brush type.
string	Description [get]
	A compact readable summary of brush type and configuration.
Properties inherited from fCraft.Drawing.IBrushInstance
IBrush	Brush [get]
	Configured brush that created this instance.
string	InstanceDescription [get]
	A compact readable summary of brush type, configuration, and state.
int	AlternateBlocks [get]
	Whether the brush is capable of providing alternate blocks (e.g. for filling hollow DrawOps).

Additional Inherited Members
Public Attributes inherited from fCraft.Drawing.DrawOperation
readonly Player	Player
	Player who is executing this command. Used for both permission checks and messaging.
readonly Map	Map
	Map to draw blocks to.
Vector3I	Coords
	Coordinates that are currently being processed.
Static Protected Member Functions inherited from fCraft.Drawing.DrawOperation
static IEnumerable< Vector3I >	LineEnumerator (Vector3I a, Vector3I b)
static bool	RaiseBeginningEvent (DrawOperation op)
static void	RaiseBeganEvent (DrawOperation op)
static void	RaiseEndedEvent (DrawOperation op)
Protected Attributes inherited from fCraft.Drawing.DrawOperation
UndoState	UndoState
	Undo state associated with this operation. Created by DrawOperation.Begin().
Events inherited from fCraft.Drawing.DrawOperation
static EventHandler < DrawOperationBeginningEventArgs >	Beginning
static EventHandler < DrawOperationEventArgs >	Began
static EventHandler < DrawOperationEventArgs >	Ended

Detailed Description

A self-contained DrawOperation that prodivides its own brush. Purpose of this class is mostly to take care of the boilerplate code.

Constructor & Destructor Documentation

fCraft.Drawing.DrawOpWithBrush.DrawOpWithBrush ( Player  player )

protected

Member Function Documentation

abstract Block fCraft.Drawing.DrawOpWithBrush.NextBlock ( )

protectedpure virtual

Implemented in fCraft.Drawing.Fill2DDrawOperation, fCraft.Drawing.PasteDrawOperation, fCraft.Drawing.BlockDBDrawOperation, and fCraft.Drawing.UndoDrawOperation.

abstract bool fCraft.Drawing.DrawOpWithBrush.ReadParams ( CommandReader  cmd )

pure virtual

Implemented in fCraft.Drawing.PasteDrawOperation, fCraft.Drawing.BlockDBDrawOperation, fCraft.Drawing.UndoDrawOperation, and fCraft.Drawing.Fill2DDrawOperation.

Property Documentation

abstract override string fCraft.Drawing.DrawOpWithBrush.Description

get

---

The documentation for this class was generated from the following file:

• fCraft/Drawing/DrawOpWithBrush.cs
