Abstract class representing a drawing operation. More...

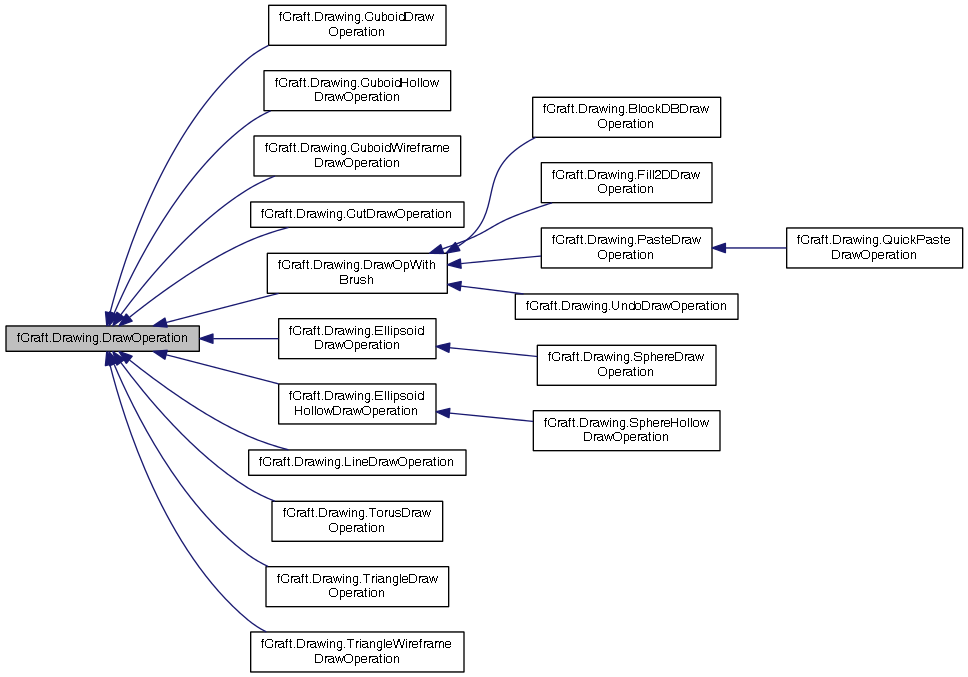

Inheritance diagram for fCraft.Drawing.DrawOperation:

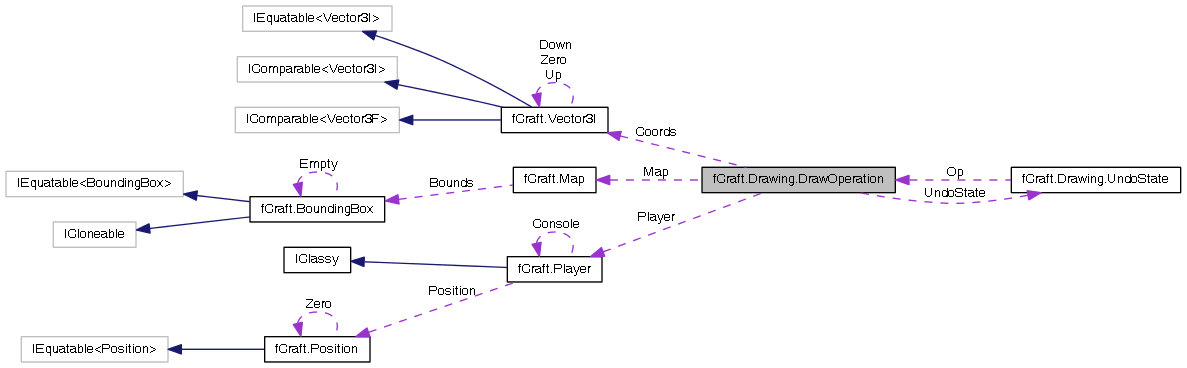

Collaboration diagram for fCraft.Drawing.DrawOperation:

Public Member Functions
virtual bool	Prepare ([NotNull] Vector3I[] marks)
	Prepares DrawOperation to start. Called after the player made a selection, usually on player's I/O thread. Brush property must be set before calling Prepare.

virtual bool	Begin ()
	Begins the execution of this DrawOperation. Raises DrawOperation.Beginning (cancelable) and DrawOperation.Began events.

abstract int	DrawBatch (int maxBlocksToDraw)

void	Cancel ()
	Asynchronously cancels this draw operation.

Public Attributes
readonly Player	Player
	Player who is executing this command. Used for both permission checks and messaging.

readonly Map	Map
	Map to draw blocks to.

Vector3I	Coords
	Coordinates that are currently being processed.

Protected Member Functions
	DrawOperation ([NotNull] Player player)

bool	DrawOneBlock ()

Static Protected Member Functions
static IEnumerable< Vector3I >	LineEnumerator (Vector3I a, Vector3I b)

static bool	RaiseBeginningEvent (DrawOperation op)

static void	RaiseBeganEvent (DrawOperation op)

static void	RaiseEndedEvent (DrawOperation op)

Protected Attributes
UndoState	UndoState
	Undo state associated with this operation. Created by DrawOperation.Begin().

Properties
abstract int	ExpectedMarks `[get]`
	Expected number of marks to pass to DrawOperation.Prepare()

IBrushInstance	Brush `[get, set]`
	Brush used to determine which blocks to place. Must be assigned before DrawOperation.Prepare() is called.

BlockChangeContext	Context `[get, set]`
	Block change context, to be reported to BlockDB and Player.PlacingBlock/PlacedBlock events. Should include BlockChangeContext.Drawn flag.

Vector3I[]	Marks `[get, set]`
	Marks given by the player to this command. Marks could come from either clicks or /Mark command. Set by DrawOperation.Prepare()

DateTime	StartTime `[get, set]`
	Time when the draw operatation began. Set by DrawOperation.Begin()

BoundingBox	Bounds `[get, set]`
	Area that bounds the DrawOperation's extent, if possible to estimate in advance. Used for logging. Should be assigned, as accurately as possible, before DrawOp finishes.

bool	HasBegun `[get, set]`
	Whether this operation has been started (queued for processing on the Map).

bool	IsDone `[get, set]`
	Whether this operation is done (has finished or had been cancelled).

bool	IsCancelled `[get, set]`
	Whether this operation has been cancelled (e.g. by /Undo or /WLock).

int	BlocksProcessed `[get, set]`
	Number of blocks/coordinates that were considered for drawing.

int	BlocksUpdated `[get, set]`
	Number of blocks/coordinates that ended up being changed/updated.

int	BlocksDenied `[get, set]`
	Number of blocks/coordinates that were supposed to be changed/updated, but were left untouched due to permission issues.

int	BlocksSkipped `[get, set]`
	Number of blocks/coordinates that were processed, and left untouched: either because the Brush decided to skip it, or because map's current block matched the desired blocktype.

int	BlocksTotalEstimate `[get, set]`
	Estimate of total number of blocks that will be processed by this command. Should be as accurate as reasonably possible by DrawOperation.Prepare(). Used for volume permission checks. Must not be negative.

int	BlocksLeftToProcess `[get]`
	Estimated total blocks left to process.

int	PercentDone `[get]`
	Approximate completion percentage of this command.

int	AlternateBlockIndex `[get, set]`
	Whether the brush should use alternate block (if available) for filling insides of hollow DrawOps. Currently only supported by NormalBrush. Used with CuboidH/CuboidW/EllipsoidH drawops.

abstract string	Name `[get]`
	General name of this type of draw operation. Should be same for all instances.

virtual string	Description `[get]`
	Compact description of this specific draw operation, with any instance-specific parameters, and the brush's instance description.

bool	AnnounceCompletion `[get, set]`
	Whether completion or cancellation of this DrawOperation should be announced to Player.

bool	LogCompletion `[get, set]`
	Whether completion or cancellation of this DrawOperation should be logged.

bool	TimeToEndBatch `[get]`

Events
static EventHandler < DrawOperationBeginningEventArgs >	Beginning

static EventHandler < DrawOperationEventArgs >	Began

static EventHandler < DrawOperationEventArgs >	Ended

Detailed Description

Abstract class representing a drawing operation.

Constructor & Destructor Documentation

fCraft.Drawing.DrawOperation.DrawOperation ( [NotNull] Player player )

protected

Member Function Documentation

virtual bool fCraft.Drawing.DrawOperation.Begin ( )

virtual

Begins the execution of this DrawOperation. Raises DrawOperation.Beginning (cancelable) and DrawOperation.Began events.

Returns: True if operation started succesfully. False if operation was canceled by an event callback.

Reimplemented in fCraft.Drawing.UndoDrawOperation, and fCraft.Drawing.CutDrawOperation.

void fCraft.Drawing.DrawOperation.Cancel ( )

Asynchronously cancels this draw operation.

abstract int fCraft.Drawing.DrawOperation.DrawBatch ( int maxBlocksToDraw )

pure virtual

bool fCraft.Drawing.DrawOperation.DrawOneBlock ( )

protected

static IEnumerable<Vector3I> fCraft.Drawing.DrawOperation.LineEnumerator	(	Vector3I	a,
		Vector3I	b
	)

staticprotected

virtual bool fCraft.Drawing.DrawOperation.Prepare ( [NotNull] Vector3I[] marks )

virtual

Prepares DrawOperation to start. Called after the player made a selection, usually on player's I/O thread. Brush property must be set before calling Prepare.

Parameters

marks Array of marks given by the player.

Returns: True if both DrawOperation and Brush have been prepared succesfully. False if either of them failed.

Exceptions

ArgumentNullException	marks is null.
ArgumentException	Wrong number of marks is given.
NullReferenceException	DrawOperation's Brush property is not set before calling Prepare.

static void fCraft.Drawing.DrawOperation.RaiseBeganEvent ( DrawOperation op )

staticprotected

static bool fCraft.Drawing.DrawOperation.RaiseBeginningEvent ( DrawOperation op )

staticprotected

static void fCraft.Drawing.DrawOperation.RaiseEndedEvent ( DrawOperation op )

staticprotected

Member Data Documentation

Vector3I fCraft.Drawing.DrawOperation.Coords

Coordinates that are currently being processed.

readonly Map fCraft.Drawing.DrawOperation.Map

Map to draw blocks to.

readonly Player fCraft.Drawing.DrawOperation.Player

Player who is executing this command. Used for both permission checks and messaging.

UndoState fCraft.Drawing.DrawOperation.UndoState

protected

Undo state associated with this operation. Created by DrawOperation.Begin().

Property Documentation

int fCraft.Drawing.DrawOperation.AlternateBlockIndex

getset

Whether the brush should use alternate block (if available) for filling insides of hollow DrawOps. Currently only supported by NormalBrush. Used with CuboidH/CuboidW/EllipsoidH drawops.

bool fCraft.Drawing.DrawOperation.AnnounceCompletion

getset

Whether completion or cancellation of this DrawOperation should be announced to Player.

int fCraft.Drawing.DrawOperation.BlocksDenied

getset

Number of blocks/coordinates that were supposed to be changed/updated, but were left untouched due to permission issues.

int fCraft.Drawing.DrawOperation.BlocksLeftToProcess

get

Estimated total blocks left to process.

int fCraft.Drawing.DrawOperation.BlocksProcessed

getset

Number of blocks/coordinates that were considered for drawing.

int fCraft.Drawing.DrawOperation.BlocksSkipped

getset

Number of blocks/coordinates that were processed, and left untouched: either because the Brush decided to skip it, or because map's current block matched the desired blocktype.

int fCraft.Drawing.DrawOperation.BlocksTotalEstimate

getset

Estimate of total number of blocks that will be processed by this command. Should be as accurate as reasonably possible by DrawOperation.Prepare(). Used for volume permission checks. Must not be negative.

int fCraft.Drawing.DrawOperation.BlocksUpdated

getset

Number of blocks/coordinates that ended up being changed/updated.

BoundingBox fCraft.Drawing.DrawOperation.Bounds

getset

Area that bounds the DrawOperation's extent, if possible to estimate in advance. Used for logging. Should be assigned, as accurately as possible, before DrawOp finishes.

IBrushInstance fCraft.Drawing.DrawOperation.Brush

getset

Brush used to determine which blocks to place. Must be assigned before DrawOperation.Prepare() is called.

BlockChangeContext fCraft.Drawing.DrawOperation.Context

getset

Block change context, to be reported to BlockDB and Player.PlacingBlock/PlacedBlock events. Should include BlockChangeContext.Drawn flag.

virtual string fCraft.Drawing.DrawOperation.Description

get

Compact description of this specific draw operation, with any instance-specific parameters, and the brush's instance description.

abstract int fCraft.Drawing.DrawOperation.ExpectedMarks

get

Expected number of marks to pass to DrawOperation.Prepare()

bool fCraft.Drawing.DrawOperation.HasBegun

getset

Whether this operation has been started (queued for processing on the Map).

bool fCraft.Drawing.DrawOperation.IsCancelled

getset

Whether this operation has been cancelled (e.g. by /Undo or /WLock).

bool fCraft.Drawing.DrawOperation.IsDone

getset

Whether this operation is done (has finished or had been cancelled).

bool fCraft.Drawing.DrawOperation.LogCompletion

getset

Whether completion or cancellation of this DrawOperation should be logged.

Vector3I [] fCraft.Drawing.DrawOperation.Marks

getset

Marks given by the player to this command. Marks could come from either clicks or /Mark command. Set by DrawOperation.Prepare()

abstract string fCraft.Drawing.DrawOperation.Name

get

General name of this type of draw operation. Should be same for all instances.

int fCraft.Drawing.DrawOperation.PercentDone

get

Approximate completion percentage of this command.

DateTime fCraft.Drawing.DrawOperation.StartTime

getset

Time when the draw operatation began. Set by DrawOperation.Begin()

bool fCraft.Drawing.DrawOperation.TimeToEndBatch

getprotected

Event Documentation

EventHandler<DrawOperationEventArgs> fCraft.Drawing.DrawOperation.Began

static

EventHandler<DrawOperationBeginningEventArgs> fCraft.Drawing.DrawOperation.Beginning

static

EventHandler<DrawOperationEventArgs> fCraft.Drawing.DrawOperation.Ended

static

The documentation for this class was generated from the following file:

fCraft/Drawing/DrawOperation.cs
