Draw operation that creates a solid sphere. More...

Inheritance diagram for fCraft.Drawing.SphereDrawOperation:

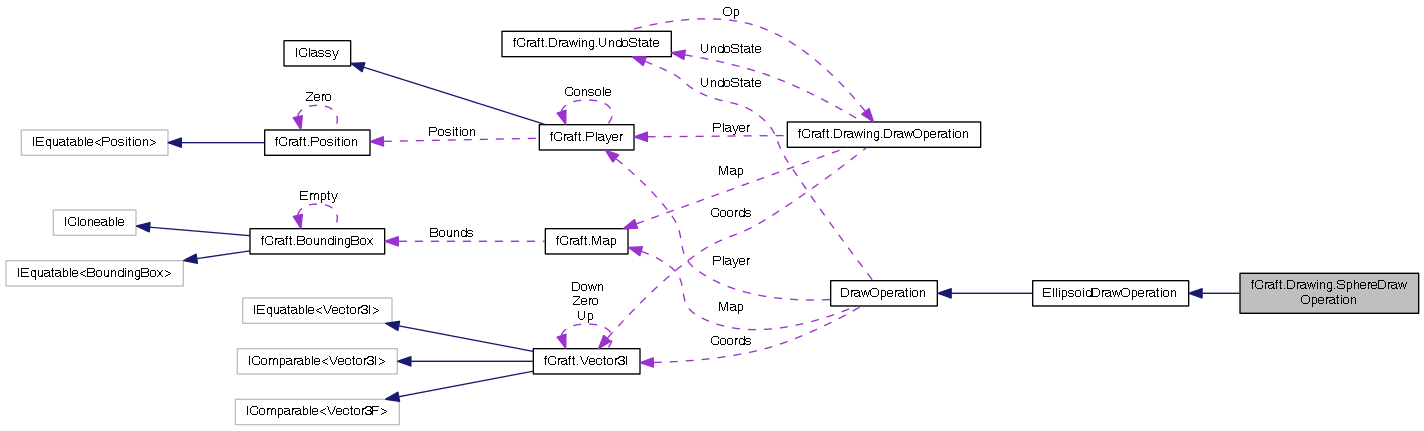

Collaboration diagram for fCraft.Drawing.SphereDrawOperation:

[legend]

Public Member Functions
	SphereDrawOperation (Player player)

override bool	Prepare (Vector3I[] marks)
	Prepares DrawOperation to start. Called after the player made a selection, usually on player's I/O thread. Brush property must be set before calling Prepare.

Public Member Functions inherited from fCraft.Drawing.EllipsoidDrawOperation
	EllipsoidDrawOperation (Player player)

override int	DrawBatch (int maxBlocksToDraw)

Public Member Functions inherited from fCraft.Drawing.DrawOperation
virtual bool	Begin ()
	Begins the execution of this DrawOperation. Raises DrawOperation.Beginning (cancelable) and DrawOperation.Began events.

void	Cancel ()
	Asynchronously cancels this draw operation.

Properties
override string	Name `[get]`

Properties inherited from fCraft.Drawing.EllipsoidDrawOperation
override string	Name `[get]`

override int	ExpectedMarks `[get]`

Properties inherited from fCraft.Drawing.DrawOperation
abstract int	ExpectedMarks `[get]`
	Expected number of marks to pass to DrawOperation.Prepare()

IBrushInstance	Brush `[get, set]`
	Brush used to determine which blocks to place. Must be assigned before DrawOperation.Prepare() is called.

BlockChangeContext	Context `[get, set]`
	Block change context, to be reported to BlockDB and Player.PlacingBlock/PlacedBlock events. Should include BlockChangeContext.Drawn flag.

Vector3I[]	Marks `[get, set]`
	Marks given by the player to this command. Marks could come from either clicks or /Mark command. Set by DrawOperation.Prepare()

DateTime	StartTime `[get, set]`
	Time when the draw operatation began. Set by DrawOperation.Begin()

BoundingBox	Bounds `[get, set]`
	Area that bounds the DrawOperation's extent, if possible to estimate in advance. Used for logging. Should be assigned, as accurately as possible, before DrawOp finishes.

bool	HasBegun `[get, set]`
	Whether this operation has been started (queued for processing on the Map).

bool	IsDone `[get, set]`
	Whether this operation is done (has finished or had been cancelled).

bool	IsCancelled `[get, set]`
	Whether this operation has been cancelled (e.g. by /Undo or /WLock).

int	BlocksProcessed `[get, set]`
	Number of blocks/coordinates that were considered for drawing.

int	BlocksUpdated `[get, set]`
	Number of blocks/coordinates that ended up being changed/updated.

int	BlocksDenied `[get, set]`
	Number of blocks/coordinates that were supposed to be changed/updated, but were left untouched due to permission issues.

int	BlocksSkipped `[get, set]`
	Number of blocks/coordinates that were processed, and left untouched: either because the Brush decided to skip it, or because map's current block matched the desired blocktype.

int	BlocksTotalEstimate `[get, set]`
	Estimate of total number of blocks that will be processed by this command. Should be as accurate as reasonably possible by DrawOperation.Prepare(). Used for volume permission checks. Must not be negative.

int	BlocksLeftToProcess `[get]`
	Estimated total blocks left to process.

int	PercentDone `[get]`
	Approximate completion percentage of this command.

int	AlternateBlockIndex `[get, set]`
	Whether the brush should use alternate block (if available) for filling insides of hollow DrawOps. Currently only supported by NormalBrush. Used with CuboidH/CuboidW/EllipsoidH drawops.

abstract string	Name `[get]`
	General name of this type of draw operation. Should be same for all instances.

virtual string	Description `[get]`
	Compact description of this specific draw operation, with any instance-specific parameters, and the brush's instance description.

bool	AnnounceCompletion `[get, set]`
	Whether completion or cancellation of this DrawOperation should be announced to Player.

bool	LogCompletion `[get, set]`
	Whether completion or cancellation of this DrawOperation should be logged.

bool	TimeToEndBatch `[get]`

Additional Inherited Members
Public Attributes inherited from fCraft.Drawing.DrawOperation
readonly Player	Player
	Player who is executing this command. Used for both permission checks and messaging.

readonly Map	Map
	Map to draw blocks to.

Vector3I	Coords
	Coordinates that are currently being processed.

Protected Member Functions inherited from fCraft.Drawing.DrawOperation
	DrawOperation ([NotNull] Player player)

bool	DrawOneBlock ()

Static Protected Member Functions inherited from fCraft.Drawing.DrawOperation
static IEnumerable< Vector3I >	LineEnumerator (Vector3I a, Vector3I b)

static bool	RaiseBeginningEvent (DrawOperation op)

static void	RaiseBeganEvent (DrawOperation op)

static void	RaiseEndedEvent (DrawOperation op)

Protected Attributes inherited from fCraft.Drawing.DrawOperation
UndoState	UndoState
	Undo state associated with this operation. Created by DrawOperation.Begin().

Events inherited from fCraft.Drawing.DrawOperation
static EventHandler < DrawOperationBeginningEventArgs >	Beginning

static EventHandler < DrawOperationEventArgs >	Began

static EventHandler < DrawOperationEventArgs >	Ended

Detailed Description

Draw operation that creates a solid sphere.

Constructor & Destructor Documentation

fCraft.Drawing.SphereDrawOperation.SphereDrawOperation ( Player player )

Member Function Documentation

override bool fCraft.Drawing.SphereDrawOperation.Prepare ( Vector3I[] marks )

virtual

Prepares DrawOperation to start. Called after the player made a selection, usually on player's I/O thread. Brush property must be set before calling Prepare.

Parameters

marks Array of marks given by the player.

Returns: True if both DrawOperation and Brush have been prepared succesfully. False if either of them failed.

Exceptions

ArgumentNullException	marks is null.
ArgumentException	Wrong number of marks is given.
NullReferenceException	DrawOperation's Brush property is not set before calling Prepare.

Reimplemented from fCraft.Drawing.EllipsoidDrawOperation.

Property Documentation

override string fCraft.Drawing.SphereDrawOperation.Name

get

The documentation for this class was generated from the following file:

fCraft/Drawing/DrawOps/SphereDrawOperation.cs
